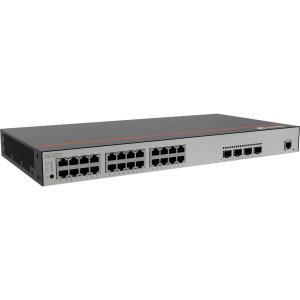

High-Power PoE++ & 24-Port Gigabit Huawei Switch Cloud-Managed & Reliable S5735-L24P4S-A-V2
The Huawei S5735-L24P4S-A-V2 is a high-performance 24-port Gigabit Ethernet switch designed for enterprise networks, offering Power over Ethernet Plus Plus (PoE++) support, flexible uplinks, and cloud-based management. Ideal for IP cameras, wireless access points (Wi-Fi 6/6E), VoIP phones, and IoT deployments, this switch delivers reliable connectivity with advanced security and energy efficiency.
Key Features & Benefits
✅ High-Power PoE++ Support – Provides up to 30W per port (IEEE 802.3bt) and 370W total PoE budget, enabling simultaneous power delivery to multiple high-demand devices.
✅ 24 Gigabit Ethernet Ports + 4 SFP Uplinks – Offers flexible connectivity with 4x combo ports (RJ45/SFP), supporting fiber or copper uplinks for scalable network expansion.
✅ Cloud-Managed & Easy Deployment – Compatible with Huawei CloudCampus and iMaster NCE, enabling zero-touch provisioning, remote monitoring, and AI-driven optimization.
✅ Enterprise-Grade Reliability – Dual power supply (optional) and fanless design ensure silent, uninterrupted operation in office environments.
✅ Enhanced Security – Features MACsec encryption, ACLs, port isolation, and anti-DDoS to protect against cyber threats.
✅ Energy-Efficient Design – Huawei’s Green Ethernet technology reduces power consumption by up to 30%, lowering operational costs.
Technical Specifications (S5735-L24P4S-A-V2)
| Category |
Details |
| Ports |
24x 10/100/1000BASE-T (PoE++), 4x 1000BASE-X SFP (combo) |
| PoE Budget |
370W (Max 30W per port, IEEE 802.3bt) |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.66 Mpps |
| Power Supply |
Built-in (370W), optional external redundant PSU |
| Management |
Web, CLI, SNMP, Huawei iMaster NCE (cloud) |
| Security |
MACsec, ACL, DHCP Snooping, IP Source Guard |
| Dimensions |
442 x 220 x 43.6 mm (1U height) |
Ideal Use Cases
✔ IP Surveillance – Powers 4K IP cameras with PoE++ while ensuring high-bandwidth video transmission.
✔ Wi-Fi 6/6E Networks – Supports high-density wireless APs without separate power adapters.
✔ Smart Offices & Retail – Simplifies cabling for digital signage, VoIP systems, and access control.
Why Choose This Huawei Switch?
The S5735-L24P4S-A-V2 combines high PoE power, Gigabit speed, and cloud-based automation, making it a cost-effective solution for modern enterprise networks. With Huawei’s AI-driven management and enterprise-grade security, it reduces deployment complexity while future-proofing your infrastructure.
